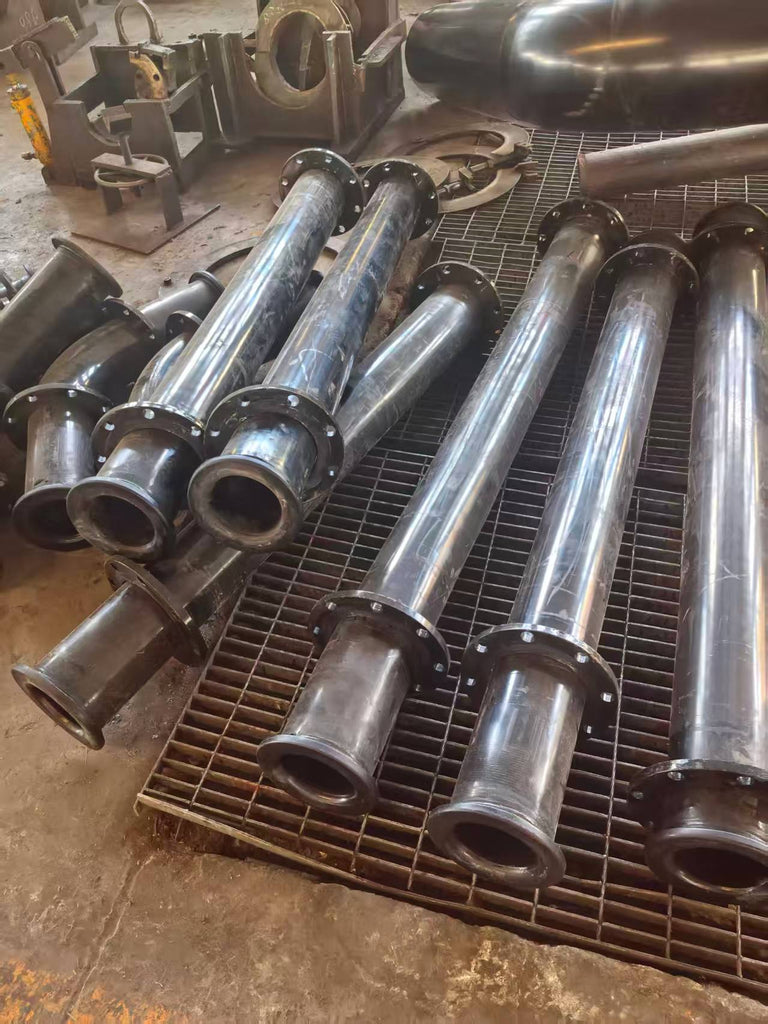

PN3.0 UHMWPE Lined Steel Pipe for Mining Slurry
$350.00
customers are viewing this product
Pressure Rating PN 3.0 MPa
Size Boundaries DN50 - DN1000
Length Standard 6M / 9M / 12M (10ft-30ft)
Technical Specification Matrix
| Engineering Parameter | Standard & Custom Availability Range |
|---|---|
| Nominal Diameter (DN) | DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN400, DN450, DN500, DN600, DN700, DN800, DN1000 |
| Working Pressure Limit | PN 3.0 MPa (High pressure threshold engineered for deep underground mine delivery) |
| Lining Core Material | Ultra-High Molecular Weight Polyethylene (UHMWPE Matrix) |
| Outer Shell Material | Heavy-duty Carbon Steel Outer Pipe (Mechanical structural reinforcement) |
| Length Options (Metric) | 6 Meters, 9 Meters, 12 Meters per single pipe section |
| Length Options (Imperial) | 10 ft, 20 ft, 30 ft (Compatible with global international layouts) |
| Jointing Technology | Standard industrial flange system or mechanical coupling matrix |
Why Choose Zhengju Lined Composite Pipelines?
- Extreme Slurry Defense: The inner UHMWPE liner outlasts carbon steel by 4 to 7 times when handling highly abrasive tailings, gravel mixtures, and hard particle pulps.
- Zero Blockage Interface: Naturally self-lubricating surface structure eliminates heavy mineral scaling and mud-hanging issues, maintaining absolute continuous flow rate efficiency.
- Structural Security: Reinforced steel shell maintains strict anti-vacuum capacity, preventing internal liner delamination or collapse under complex pressure cycles.
Request Instant Factory Quote & Flange Drawing Support
Planning a mining slurry loop or heavy tailing pipeline system? Contact our technical team to receive specific wall thickness calculations, verified pressure data sheets, and custom configurations.
