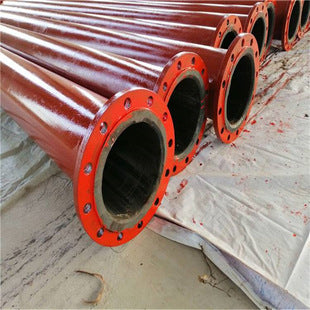

PN2.0 Mining Pipe for Copper Ore Processing
$50.00
customers are viewing this product
PN2.0 Mining Pipe for Copper Ore Processing | Steel Lined Rubber Slurry Pipeline, Acid-Resistant Abrasion Defending Composite Tubing DN50-DN1000
Corrosive Ore Slurry Pipeline Solution
Specially engineered for aggressive copper ore processing, flotation circuits, and acidic tailings management, this PN2.0 (2.0 MPa / 290 PSI) composite pipeline combines the structural rigidity of heavy-wall carbon steel with a thick, vulcanized wear-resistant rubber lining. It excels at dampening severe kinetic impacts from sharp mineral particles while resisting chemical corrosion from processing reagents and acid mine drainage.
Technical Specifications
| CHARACTERISTICS | Details of Steel Lined Rubber Pipe |
|---|---|
| Base Structure | Heavy-duty carbon steel outer pipe (Seamless/Spiral) + Inner vulcanized natural/synthetic rubber liner |
| Pressure Rating | PN2.0 / 2.0 MPa / 20 Bar / 290 PSI |
| Nominal Diameter | DN50 - DN1000 full range coverage available |
| Rubber Liner Thickness | 4mm, 5mm, 6mm, 8mm, 10mm, 12mm (Customized based on slurry pH & particle mesh size) |
| Connection Interface | Integral Swivel Flange / Fixed Flange Transition Joint (Full-face rubber covered sealing) |
| Target Media | Copper/Gold concentrator slurries, acidic leaching fluids, dense tailing thickener underflow |
Request Technical Consultation & Factory Quote
Contact our mining pipeline engineers to specify your slurry pH levels, solid percentage, and flow velocity to determine the optimal rubber elastomer grade and steel wall thickness for your project.
