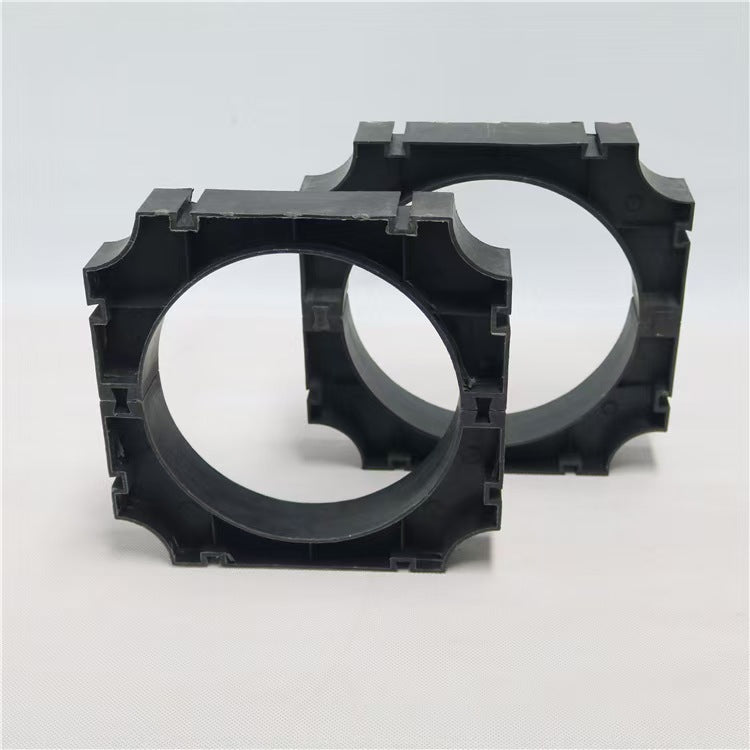

Heavy-Duty HDPE Pipe Spacers for Underground Power Ducts
$0.50
customers are viewing this product
Features & Applications
- Premium Material & Integral Molding: Crafted from high-strength HDPE with an integrally molded curved saddle design that ensures a perfect, snug fit for the outer diameters of MPP/HDPE power ducts and double-wall corrugated drainage pipes.
- Superior Performance: Features exceptional acid/alkali resistance, anti-aging properties, UV stability, excellent insulation, low moisture absorption, and remarkable heavy-duty crush resistance.
- Ultimate Pipe Protection: Engineered to lock pipe spacing securely during backfilling, preventing underground pipelines from sinking, shifting, or deformation under pressure.
- Flexible & Modular Design: These HDPE pipe pillows feature a detachable interlocking system for easy stacking and assembly. Available in single or multi-bore customized specifications from DN50 to DN800.
- Wide Applications: Ideal for municipal power cable ducting networks, underground sewage systems, and drainage infrastructure projects.
Technical Specifications
| CHARACTERISTICS | Details of HDPE Pipe Spacers / Pillows |
|---|---|
| Material Grade | 100% High-Density Polyethylene (HDPE) / Virgin PP Optional |
| Supported Pipe Diameters | DN50 to DN800 (Customized saddle radii to match exact outer diameters of MPP, PVC, and corrugated pipes) |
| Structure Configuration | Single-bore, Dual-bore, Tri-bore, and Multi-bore interlocking grid combinations |
| Load Capacity | Heavy-duty compressive strength, resistant to high-impact backfilling soil pressure |
| Key Properties | High electrical insulation, chemical corrosion resistance, zero moisture absorption, anti-UV |
| Connection System | Male-female slide-lock / clip-on interlocking mechanism for modular building block stacking |
| Primary Applications | Underground power cable encasement, telecom duct spacing, municipal drainage and sewage pipe alignment |
Request Customized Specifications & Factory Quote
Contact our engineering team to customize the saddle radius, bore configuration (1x2, 2x3, etc.), and center-to-center spacing clearance required for your specific power ducting or drainage project.
